Novaspider, one of a kind

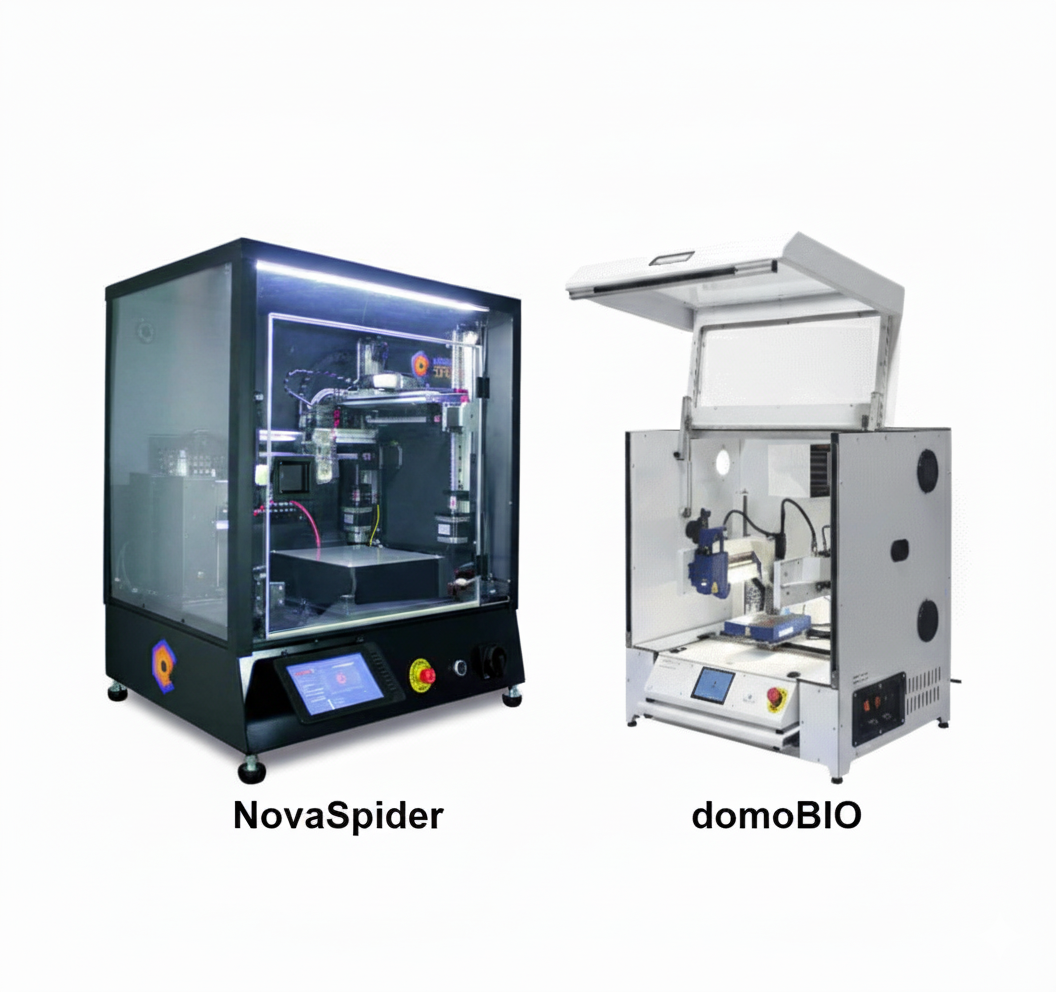

Introducing NovaSpider’s cutting-edge scientific equipment, a patented technology that seamlessly combines melt-electrowriting, electrospinning, and other printing techniques. This innovation enables the creation of advanced nanocomposites with nanofibers, offering a spectrum of possibilities.

Unlock the potential to craft pre-designed structures in three distinct forms: ultrathin oriented fibers, random nanofibers, and solid objects. We achieve this versatility through the application of three techniques: electrospinning, melt-electrowriting, and fused deposition modeling (FDM). Keep an eye out for additional additive manufacturing technologies, which will soon be at your disposal.

Our state-of-the-art equipment incorporates the latest Industry 4.0 technologies, facilitating the seamless integration of various additive manufacturing methods in a modular and user-friendly manner. Precise control over material flow is achieved through pressure-driven mechanisms, or mechanically, thanks to our innovative pellet extruder. This flexibility empowers you to work with an extensive range of materials, expanding your creative horizons.

NovaSpider’s tool is the result of collaborative efforts by a dynamic team of scientists and engineers at the forefront of nanoscience research, housed at the prestigious CIC nanoGUNE center. Adding to this expertise, Nadetech, a leading producer of scientific equipment on an industrial scale, brings its wealth of experience to the table.

Experience the future of additive manufacturing with NovaSpider’s innovative equipment – where science, technology, and creativity converge to shape the world of nanocomposites.

melt electrowriting nanofibers electrospinning

Melt-electrowriting and electrospinning combined with other printing technologies in a single tool

Fused deposition modeling (FDM)

Fused deposition modeling (FDM) is a widely spread additive manufacturing technique to create 3D parts with thermoplastics. To sum up, this method consists on a layer-to-layer deposition of molten material that solidifies when it cools creating the desired object. In addition, It can be performed with commercial and with custom made materials.

Melt electrospinning

Melt electrospinning is a processing technique to produce fibrous structures from polymer melts. In this particular case of electrospinning, the collection of the fiber can be very focused. Therefore, combined with moving collectors, melt electrospinning writing is a way to perform 3D printing with ultrathin fibers. Moreover, polymer melts eliminates the need for volatile solvents.

Solution electrospinning

Electrospinning is a fiber production method which uses electric force to draw charged threads from polymer solutions with diameters in the order of some hundred nanometers. In short, solution electrospinnig needs the material dissolved in an appropriate solvent forming a fluid which viscosity, surface tension and conductivity must be within certain ranges.

Electrospinning

Electrospinning is a fiber production method which uses electric force to draw charged threads of polymer solutions or polymer melts up to fiber diameters in the order of some hundred nanometers. Particularly, the process shares characteristics of both electrospraying and conventional solution dry spinning of fibers. The process does not require the use of coagulation chemistry or high temperatures to produce solid threads from solution. As a result, the process is particularly suited to the production of fibers using large and complex molecules. Particularly, when we use molten precursors; this method ensures that no solvent can be carried over into the final product. [1]

Melt Electrowriting (MEW)

Electrostatic spinning (electrospinning) is a manufacturing process that draws fibers using electrical instabilities and is researched extensively to make filters, textiles and tissue engineering scaffolds. The vast majority of researchers use solution electrospinning, while only a fraction investigate melts. In general, electrospinning is not been considered an additive manufacturing technique, although near-field electrospinning is well recognized in the electrospinning community. There is, however, an underlying electrohydrodynamic (EHD) phenomenon for near-field electrospinning that is not well-appreciated.

Melt electrostatic writing (melt electrowriting), uses translating collectors or heads to place defined microfibers in a way that opens up new possibilities for many applications. Melt Electrowriting (MEW) is solvent-free, and GMP-manufactured polymers can be used as received. As an additive manufacturing process, it allows such design principles to manufacture new, orderly microstructures. [2]

Structures obtained :

The types of fibers and nanofibers obtained using electrospinning and melt electrowriting depend on the material used and its parameters such us viscosity, surface tension and conductivity. Process parameters such as distance, voltage, temperature and chamber atmosphere, specialy in the case of solutions, also affect the results.

Solution electrospinning

10 – 600 nm diameter
Polymers and other materials
Easily functionalized

Melt electrospinning

800 nm – 100 µm diameter
Mainly Polymers
Controlled deposition possible

Play Video

Aligned fibers with a rotating collector

Using a rotating collector (e.g., a mandrel, a wire drum, a wheel, a cone, or a frame) in electrospinning setup as shown in the video, is the earliest, most straightforward, and simplest way to fabricate aligned fibers. Certainly, fiber alignment increased with increasing the drum speed (surface velocity) up to a critical level (12.9 m/s). Likewise, the best orientation of the ES fibers in the mat occurs when the linear velocity of the rotating cylinder surface matches that of evaporating jet depositions. Therefore, it is the high velocities and/or mechanical stretching forces that impart the ejected ES fibers taken up on the rotating cylinder surface tightly in a circumferential manner, which results in the fiber alignment. [3]

Materials

The electrospinning techniques require a fluid material with a relatively high viscosity and long molecular chains, polymers are the most suitable materials to produce using nanofibers using melt electrowriting and electrospinning. It is also possible to electrospin short molecules and monomers with sufficient intermolecular forces. Moreover, with a post-treatment, nanofibers can also be obtained from other materials such as proteins, metal oxides, carbon, metals and glasses.

Polymers

Polymer is the most common material class for electrospinning. A broad range of polymers have been electrospun which covers industrial polymers, biodegradable polymers, speciality polymers and natural polymers. Generally, these polymers should have a high molecular weight and can be dissolved in a solvent. For commercially important polymers such as polyethylene and polypropylene which dissolves in few solvents, melt electrospinning provides an alternative option. Other polymers such as polyaniline, which has low molecular weight, generally requires a second electrospinnable sacrificial polymer to be blended with it for electrospinning.

Carbon: Since most polymers are made from a carbon backbone, carbon nanofibers can be made with post electrospinning carbonization process.

Metal oxide: Many metal oxides have important industrial applications due to their catalytic properties and photoactivity. For example, the precussor to produce titanium dioxide, is often titanium isopropoxide. Finaly, a post spinning sintering process converts then the precursor nanofibers into the metal oxide nanofibers.

Metal: Currently, electrospinning is unable to produce metal nanowires directly but it can be part of a process to produce them. In short, as we use electrospun precursors and sintering to fabricate metal oxide nanofibers, the metal oxide can be reduced to form metal nanofibers. [4]

Play Video

Melt electrospinnig a variety of polymers

Molecular Weight

The molecular weight is important as to whether the polymer can be melt electrospun. For linear homogeneous polymers, a low molecular weight (below 30,000 g/mol) can result in broken and poor quality fibers. For high molecular weights (above 100,000 g/mol), the polymer can be very difficult to flow through the spinneret. Many melt electrospun fibers reported use molecular weights between 40,000 and 80,000 g/mol or are blends of low and high molecular weight polymers. [5]

1- SEM images of PVA nanofibers with Graphene nanoparticles

2- SEM images of PVA nanofibers with Graphene nanoparticles

3- SEM images of PVA nanofibers with Graphene nanoparticles

4- SEM images of PVA nanofibers with Graphene nanoparticles

Nano-Composites

Polymer matrix nanofiber composite can be routinely produced using Electrospinning with electrospinnable polymers usually produce. Blending with mixed fillers is the most common method of producing the nanofiber composite. Carbon nanotubes, clays, inorganic nanoparticles and many others have been routinely electrospun in a polymer carrier. Most reports of composite showed good distribution of the filler material below a threshold although surfactant may also be added into the solution to facilitate filler distribution.

Inorganic composite nanofibers may also be produced with electrospinning and melt electrowriting as the preliminary process. They are commonly prepared by electrospinning of its precursor material followed by sintering process to remove the organic component. These fibers may be prepared by electrospinning a mixture of precursors and sintering. [4]
